ChopMesh Connector within the nTop Environment
Introduction
The ChopMesh connector is a plugin that operates within the nTop environment. It currently supports generating volume meshes from implicit geometry, currently only support internal regions.
Installation
You can install the plugin using the .msi installer or by manually placing the package files:
Copy all files to: C:\ProgramData\nTopology\connectors\
Copy the licenseKey.dat file to ChopMesh_lib folder. (contact Voxshell team to request a license key)
How to Use It
The current version supports two features:

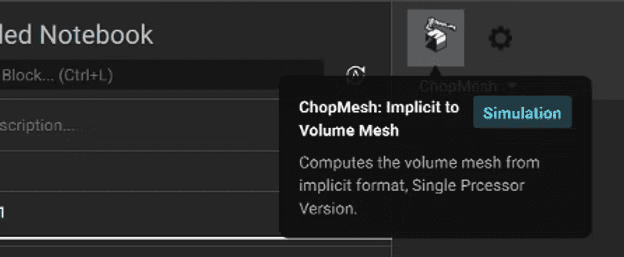

Implicit-to-volume mesh generation
Implicit-to-volume mesh generation
There is two parameters to control the element size:
Number of nx: number of division in X axis.

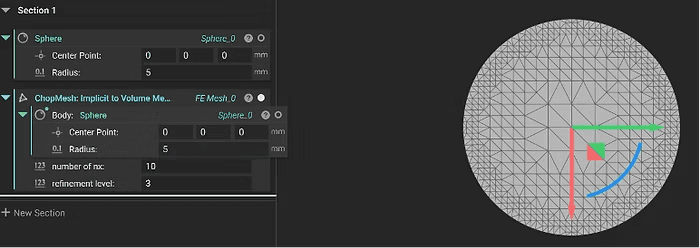

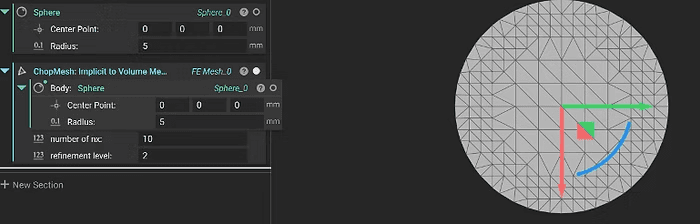

Refinement level: is the refinement level in X axis. Here is the figures refinement level from 1 to 3.

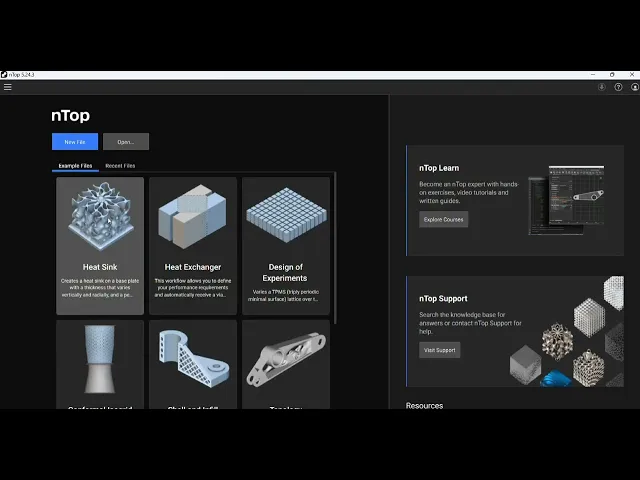

Product demo:
